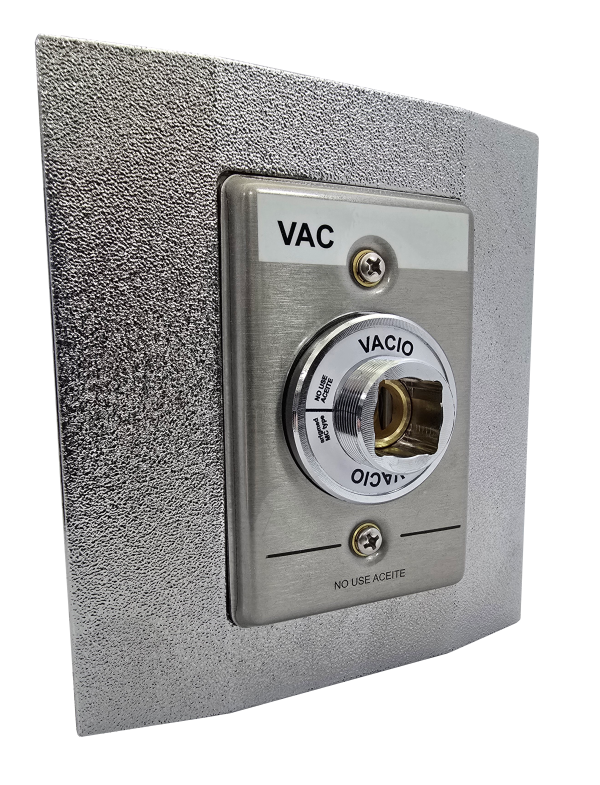

Quick Connect Medical Gas Outlet MC70 (Swedish type) + M24 screw Secondary Equipment Lock Device
*To a quote contact our technical and commercial personnel; Customer information must be valid and true (name, full address, email, telephone, country, zip code, I.D. tax).
**We always request clear specifications to make a formal quote.
Description
Medical Gas Outlet STAINLESS STEEL front made, quick connect, STAGGERED INLET MC70 (Swedish type) for each specific gas + M24 SCREW SECONDARY EQUIPMENT LOCK DEVICE. NFPA99, ASTM B819, SS EN 8752430 and SS EN ISO 9170-1 compliance code manufacturing, No crossing medical gas safety system PIN type (between primary and secondary valves), only compatible with Arigmed medical gas outlets.
Primary Valve (Back Assembly):
- Valve outlet brass made 360° rotation with “K" type copper pipe extension 10mm internal diameter.
- Automatic closing valve (Check) plastic injected polypropylene made.
- TPVs FDA grade thermoplastic injection Seals made.
- Wall Mount modular assembly hardware carbon steel sheet 18 gauge nickel finish made.
- Patient Medical Headwall hardware carbon steel sheet 18 gauge nickel finish made.
- Ceiling Mount modular assembly hardware carbon steel sheet 18 gauge nickel finish made only upon request.
- Stainless Steel spiral washer lock made.
- Mounting Hardware includes a “Guide Pin" NO CROSS CONNECTION SAFETY SYSTEM with the secondary valve, only compatible with the ARIGMED Brand.
Secondary Valve (Front Assembly):
- Staninless Steel BEVEL front, includes a Brass chromated finish push button to connect and disconnect secondary equipment, MC70 + M24 male screw type to secondary equipment locktype type inlet and fastening to the primary valve is by millimetric screws (use only to Mexico).
- Specific staggered inlet for each medical gas type with MC70 technology.
- Automatic shut-off valve (check) brass made.
- Seals manufactured in FDA grade TPVs thermoplastic injection.
- Spiral locks made of stainless steel.
- Rear box made of high-strength ABS plastic injection.
- Includes the guide pin non cross safety system to avoid any crossing of medical gases only compatible with the ARIGMED brand.
Wall and Medical Patient Headwall TRIMS:
- High resistence ABS plastic injection made wall trim.
- High resistence ABS plastic injection made medical patient headwall trim.
Compatibility:
- MC70
- Mexico´s AGA medical gas outlet
Atention
Do not use “CHLORINE", could be cause stainless steel corrosion. No crossing medical gas safety system only available with Arigmed´s medical gas outlets.
Specifications
Available Medical Gases:- Oxygen
- Medical Air
- Vacuum
- Nitrous Oxide
- Carbon Dioxide
- Color I.D. meeting NFPA99.
- Color I.D. meeting ISO.
- 240 L.P.M. (If the gas supply diameters of the main pipe allow it).
- 90 L.P.M. (If the vacuum supply diameters of the main pipe allow it).
- Secondary Equipment maximum load capacity: 450 g
- 50-55 PSI
- 100 PSI
- Include
- Only available with Arigmed´s gas outlets.
- NFPA99
- ASTM B819
- SS EN ISO 9170-1
- SS EN 8752430
- ISO 13485
- ISO 9001
Brochure
Download:No Available, this equipment is only sold in Mexico, therefore there is no technical data sheet available in this language.
