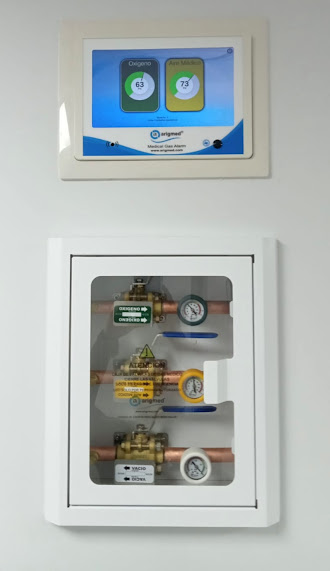

10″ Display SERIE 2 Medical Gas Alarm Zone

Add to Wish List
> SKU: N/A

*To a quote contact our technical and commercial personnel; Customer information must be valid and true (name, full address, email, telephone, country, zip code, I.D. tax).

**We always request clear specifications to make a formal quote.

Add to Wish List

Compare

Description

Medical Gas Alarm Zone to high and low pressure detection Model SERIES 2 with 10 “color LCD full color display, wall mounting cabinet and complies with NFPA99.

Cabinet Options:

  • To embed in wall ABS Thermoplastic injection front meeting NFPA 286, galvanized steel sheet alarm mounting chasis made.
  • To superimpose on a wall made of galvanized steel sheet white color powder coating finish.

Gas Number:

  • To 1 and up to 8 simultaneous medical gases in the medical gas alarm zone.

Graphics:

  • Pressure and vacuum readings on real time.
  • NFPA99 color and Medical gas Name option.
  • ISO color and Medical gas Name option.
  • Flashing Alarms in each medical gas Module.
  • Disconnections and crossing of medical gas sensors.
  • Display of area name where the medical gas alarm zone will be located.
  • Possibility of duplicate any gas or vacuum module without exceeding the limit of maximum of 8 gas or vacuum modules.

Alarm Events:

  • High and Low pressure Alarms on real time.
  • Signal interruption or disconnection in the sensors Alarm.
  • Cross connection of medical gas sensors Alarm.
  • On-screen warning when the alarm activation parameters are not those specified by the NFPA99-2015 code

Communications:

  • RJ45 female ports for data input and output.
  • Dry contact relay port for data output (1 port).
  • RS485 communication protocol in SERIAL connection to connection with zone alarm groups and with Arigmed's SERIES 2 master alarm panel.
  • Connection to INTRANET and EXTRANET (INTERNET) through the ARIGMED ETHERNET INTERFACE with HTML to view the system with remote devices such as PC, TABLET, SMARTPHONE via website.

Features:

  • Parameter modifications by user to change Units, cut-off levels for pressure and Hysteresis.
  • Editing Name of the area where the zone alarm will be located.

Certificate:

Specifications

Medical Gas alarm zone require the follow complementary devices:
  • Wall box embedding (10 cm, 14 cm)
  • Female DISS CGA-V5 check valve coupling piping
  • Male DISS CGA-V5 medical gas sensor
  • 110-220v 50/60 Power supply
To a Network System Requires the follow complementary devices:
  • Arigmed´s Master Panel Alarm SERIE 2
  • Arigmed´s Ethernet interface
  • HTML Arigmed´s Medical Gas web site subscription (user and password will be required).
  • Email user adress to receive status notifications of alarm events
  • UTP CAT6 data wiring on SERIAL mode connection with medical gas alarm zone to the arigmed medical gas master panel.
  • Good quality fix internet.
Medical Gas master panel alarm system network maximum capacity:
  • 127 medical gas or vacuum sensors.
Effects on the Equipment operation that must be avoided:
  • Voltage variations in the electrical power supply.
  • Main power supply with emergency power plants.
  • Intermittent Power supply (power lost and regained often in a short time).
Installation recommendations:
  • Check ground connection (to protect from unwanted discharges).
  • Install a system against voltage variations and power backup (Non-Break).
  • Install a system with a surge suppressor (against power surges and discharges).

Brochure

Download:
Medical Gas Alarm Zone 1-8 Gases.
Download:
General Connection Sample Ethernet Mode.
Download:
General Connection Sample Relay type Mode (dry contact signals)
